Ideal for modern applications
Internal aluminium reflector option enhances downward light to increase efficiency and save energy
Choice of lamps including ‘white light’ options
Two lamp positions – horizontal with internal reflector, vertical without reflector
Choice of spherical, conical or flat canopy to
suit surroundings
Opal or clear bowl for improved aesthetics
Quick and easy installation with hinged gear tray
Choice of RAL colours to order
Environmentally friendly materials fully recyclable
Bowl/Diffuser thermoformed acrylic, opal or clear finish
Base: die-cast aluminium, dark grey powder coat textured finish
Canopy spun aluminium, dark grey powder coat finish
Reflector pure aluminium
Post top mounting 76mm diameter x 76mm long spigot. (Dedicated accessory available to allow 60mm diameter x 100mm long spigot mounting).
Recommended
mounting height:
4 to 5 metres. Fixes to shaft with 3 x M8 stainless steel screws (supplied).

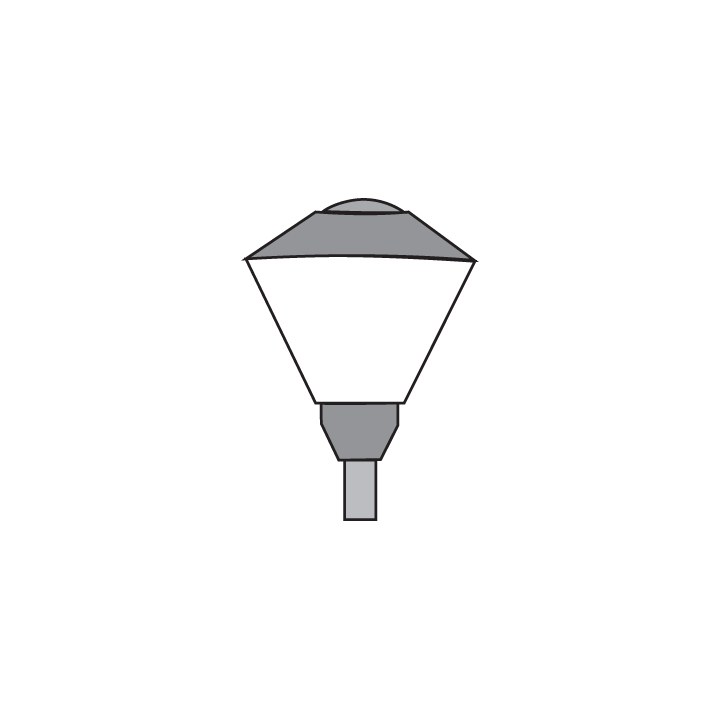

post top lantern made with die-cast aluminium base in grey powder coat, Acrylic opal/clear bowl/diffuser and canopy in spun aluminium with dark grey powder coat. Optional internal aluminium reflector.
CCT : | 6500K |
---|---|
CRI : | >70 |
Driver : | Constant Current output driver, P.F. >0.98 and THD <=10 |
Housing colour : | Dark Grey |
Ingress Protection : | IP66 |
Life time : | 50000 hours |
Light Source : | Bridgelux |
Lumen out put : | 3200 Lumens |
Power consumption : | 40W (system wattage) |
Size : | Post Top Mounting 76mm diameter x 76mm spigot, 3 meter pole |
Surge Protection : | 4 KV |
System efficacy : | 80 Lumens / watt |
Voltage range : | 110 - 240 VAC / 50-60Hz |
